CADFiber is a standalone AFP programming solution.

Compatible with main composites design solutions

NX Fibersim, CATIA Composites (CPD) and standard geometry formats (IGES, …)

AFP Design

  • Import of plies definition
  • Manual creation of plies
  • Geometry creation
  • Full AFP courses and tows definition

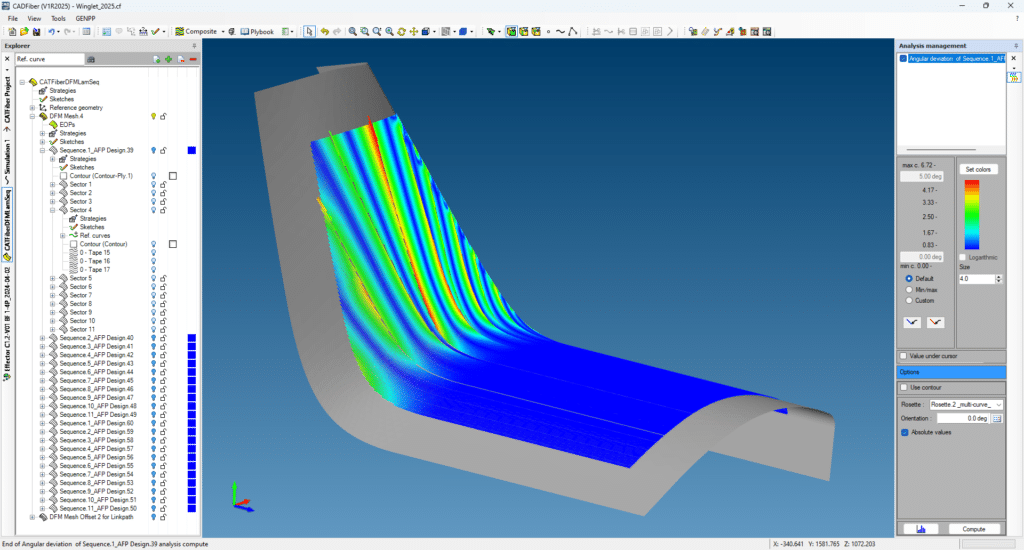

  • Full set of analyses (angular deviation, steering, gaps/laps, etc)

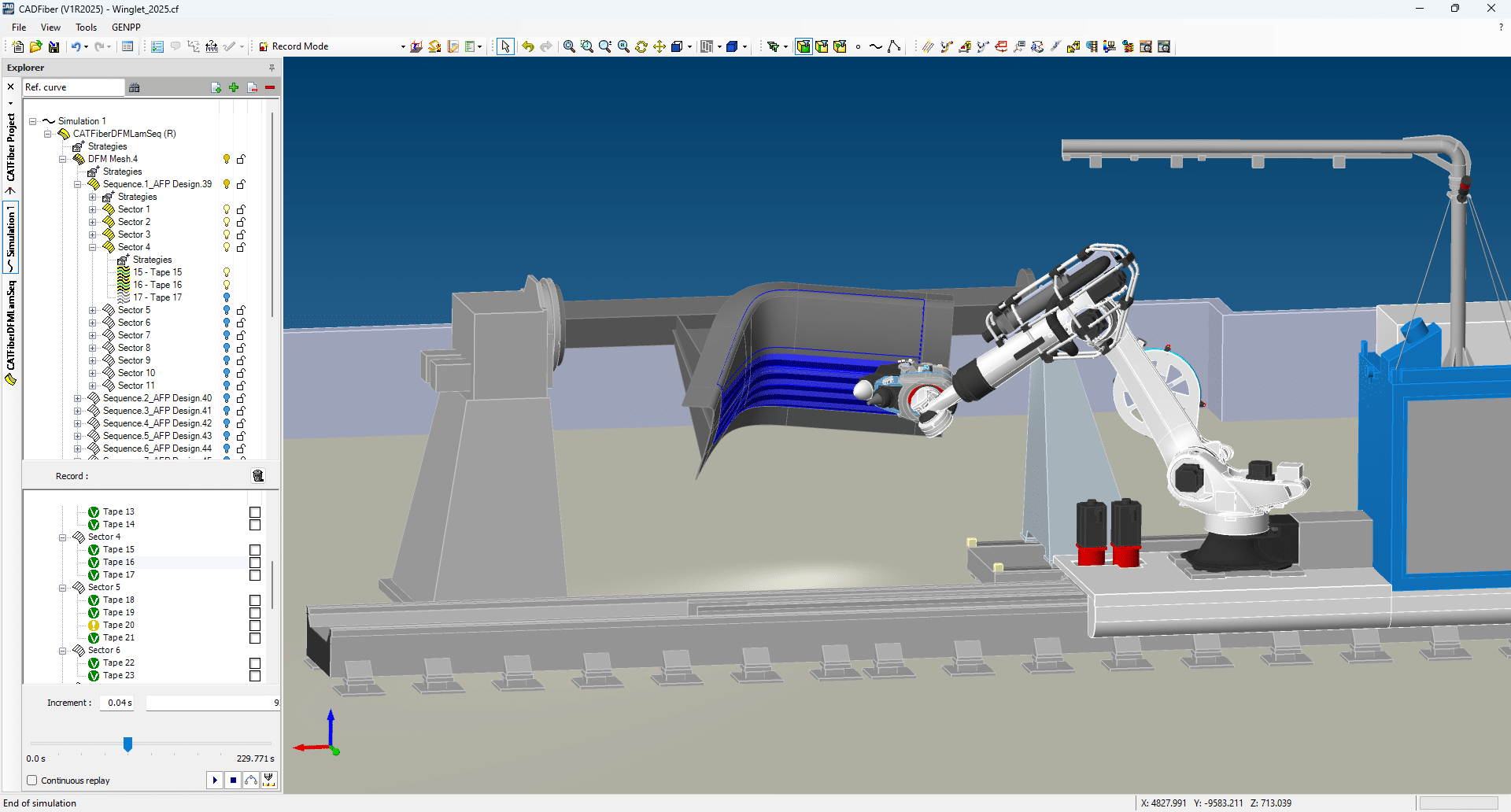

Machine simulation

  • Various robotic and machine tool kinematics handling
  • Handling of complex shapes: lay-up direction, off-part motion, additional axes
  • Simulation: collision detection, safety violation detection, motion checking (singularities, axis limits)

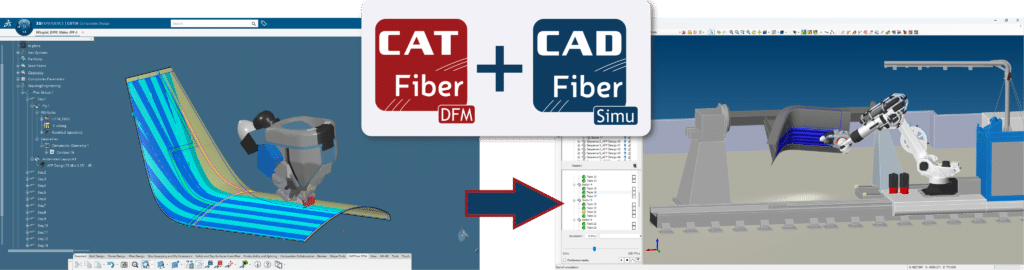

CATFiber DFM + CADFiber Simu

Take maximum benefit of CATIA Composites (CPD) with CATFiber DFM and simulate machine movements and generate the program with CADFiber Simu

Get in touch with Coriolis

Feel free to contact us to discuss you composite part automation project. We’re here to help you, every step of the way from the design until the manufacturing.
