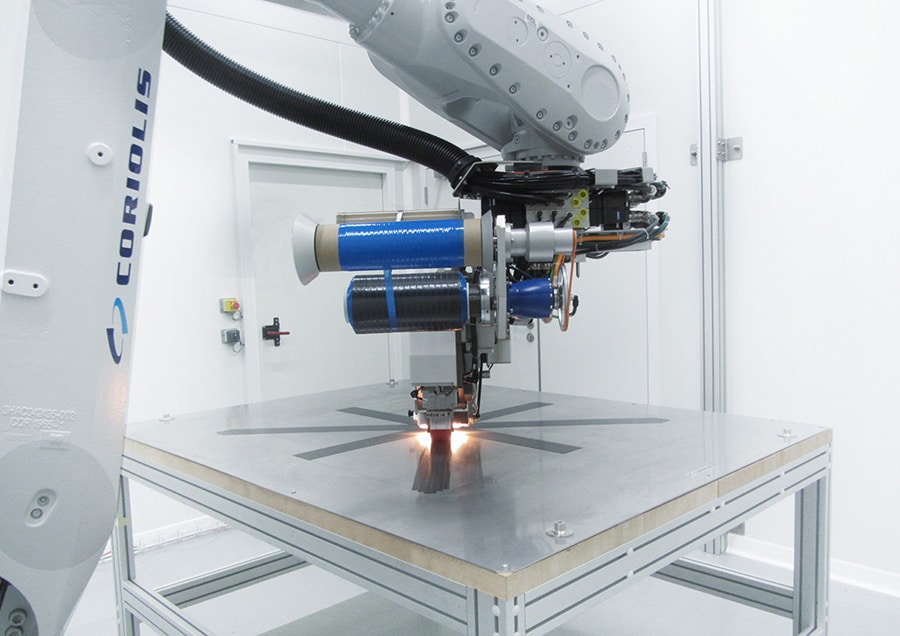

Compact fiber placement robot
Advantages
Single-fiber placement head with variable fiber width
Particularly suitable for local fiber reinforcement
Thermoset, thermoplastic and dry fiber manufacturing ability
Applications
Fuselage & panel
Concave or convex panels with double curvatures
Complex parts with narrow radius
Spar & frame
High compaction around edges
Ply drop-offs and ramps over corners
Honeycomb & sandwich
Precise core positioning assistance
Up to 30° core ramps
Technical informations
AFP process specifications
| Fiber configuration | Single fiber from 1/4 ” to 1,5” |
| Cut and feed repeatability* | ± 2.5 mm at 1 m/s |
| Compaction force range | 150 to 1,000 N |
| Temperature controls for the head | <15 °C |
| Maximum lay-up speed* | up to 1.2 m/s |
| Tolerance between course laid up on separate tapes | +2.5/-0 mm |
| Minimum distance between cutting and feeding an individual fiber** | 10 mm |
| Minimum fiber length* | 110 mm |
| Dynamic head compliance | ±5 mm |
| Roller crush | ≤5 mm |
| Spool or tape wheel on the head | |
| Non-adhesive outer surface | |
| HMI for advanced production management |
Options
| Offline programming software | Coriolis CADFiber® and CATFiber® |
| Laser heating device | up to 6 kW |
| Infrared lamp | 1200 W |
| Bar-code reader for material traceability | |
| Exchangeable head device and docking station |
Cell configurations
| Stand-alone robot | |
| Robot on a linear axis | up to 80 m in length |
| Vertical axis positioner | 0.5 to 6 t |
| Horizontal axis positioner | 0.5 to 6 t |
Main components
| Robot | KUKA*** |
| Controller | Siemens |
| Linear axis | Güdel |
| Positionner | Coriolis Composites |
Material
| Thermoset prepreg | 135 to 252 gsm dry |
| Thermoplastic prepreg | 135 to 194 gsm dry |
| Dry fiber | 135 to 252 gsm dry |
Packaging
| SPOOL | |
| Maximum diameter | 200 mm |
| Maximum gross weight | 7 kg |
| Maximum width | 407 mm |
| Backing film rewinder | |
| TAPE WHEEL | |
| Maximum diameter | 630 mm |
| Maximum gross weight | 7 kg |
*Depends on the material, heat source, part shape, controller
** Lay-up speed can be limited
***Other configurations possible
